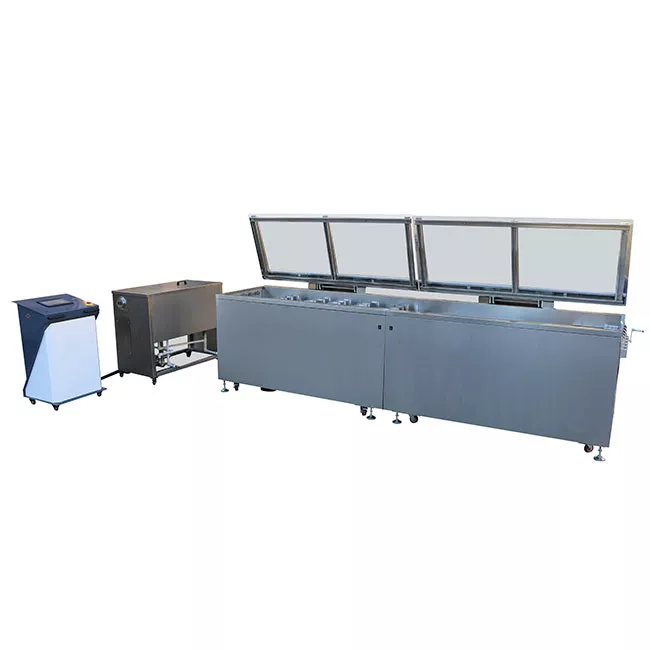

Testing Equipment for Drip Irrigation Tape and Emitting Tube

The MM-DRIP Testing Equipment is designed for comprehensive analysis of drip irrigation systems. This CE-certified lab bench enables the evaluation of flow uniformity, pressure and flow relationships, hydrostatic pressure tests at both constant and high temperatures, and burst tests for drip irrigation tubes featuring labyrinth designs. Additionally, it is suitable for testing compensating emitters and soft irrigation tubes.

Categories: Plastic Testing, Testing by Material

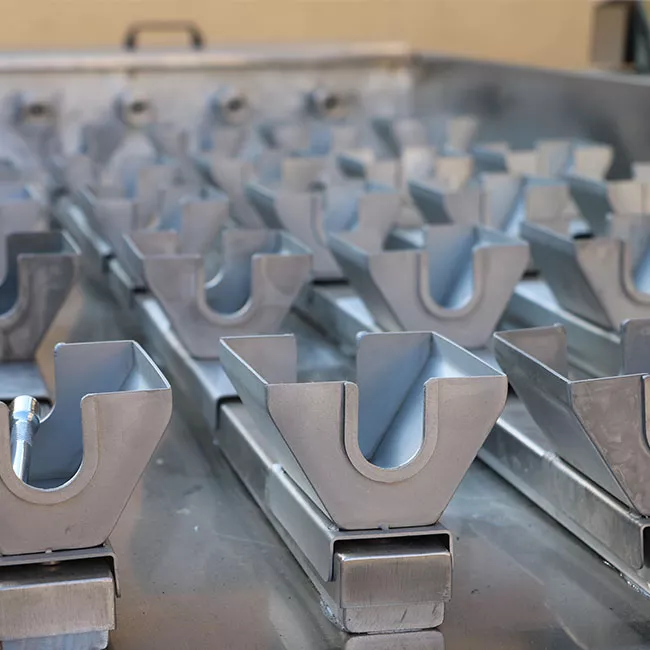

Drip Irrigation Tape and Emitting Tube 2

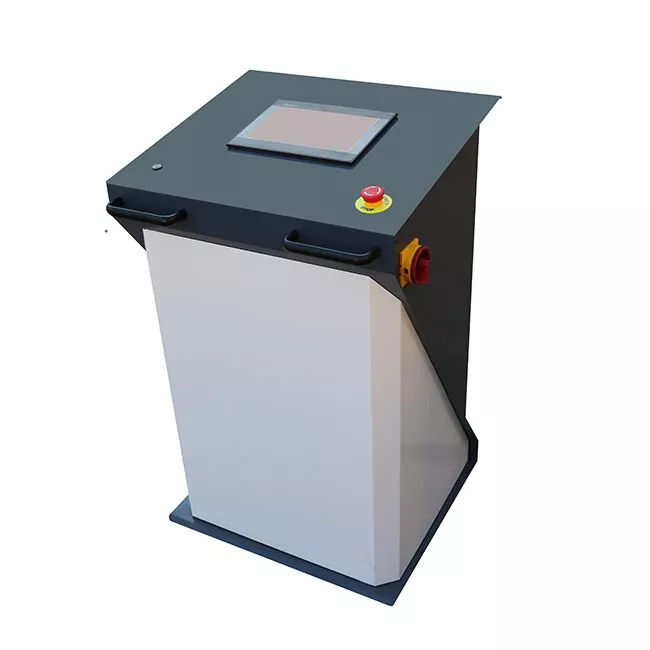

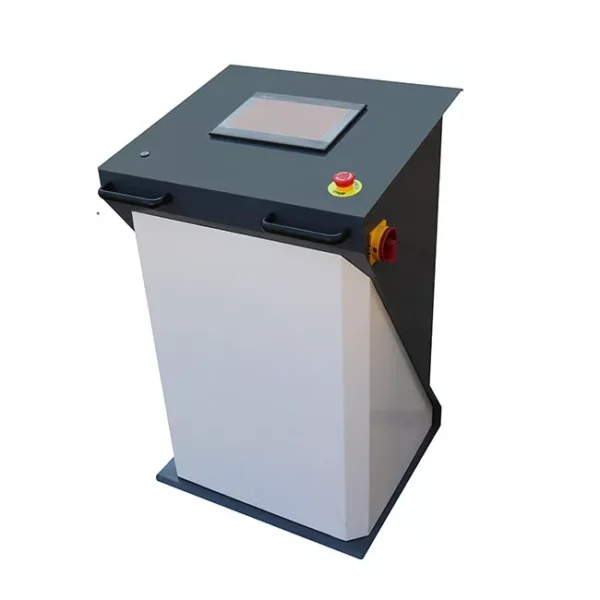

Drip Irrigation Tape and Emitting Tube 1

Features	Automatic Volume Flow Measurement: Utilizes an intelligent sensor for high-accuracy flow measurement. Multi-Functional Testing: Performs various tests including flow uniformity, hydrostatic pressure, and burst testing. High Efficiency: Fully automated procedures with multiple embedded test programs, allowing for seamless operation. Automated Data Processing: Measures dripping time and capacity, calculates key metrics, and sorts emitters automatically. Pressure and Flow Control: Automatically regulates test pressure and measures flow at various pressure points, calculating essential flow constants. Eco-Friendly Design: Water used in tests can be recycled for sustainability.
Specifications	Test Station Number: 5 (each with 5 sets of volume flow sensors) Volume Flow Measurement: 25 sensors for simultaneous measurement Timing Accuracy: ±0.1s Flow Range: 1.00 l/h to 3.60 l/h Max Test Pressure for Irrigation Tube: ≤500 kPa Emitter Spacing: 100 mm to 300 mm Emitter Diameter Options: Φ12mm, Φ16mm, Φ18mm, Φ20mm User Interface: 10” touch screen with data saving capability to USB for editing on a computer Standards: ISO 9260 ISO 9261

Features

Automatic Volume Flow Measurement: Utilizes an intelligent sensor for high-accuracy flow measurement.
Multi-Functional Testing: Performs various tests including flow uniformity, hydrostatic pressure, and burst testing.
High Efficiency: Fully automated procedures with multiple embedded test programs, allowing for seamless operation.
Automated Data Processing: Measures dripping time and capacity, calculates key metrics, and sorts emitters automatically.
Pressure and Flow Control: Automatically regulates test pressure and measures flow at various pressure points, calculating essential flow constants.
Eco-Friendly Design: Water used in tests can be recycled for sustainability.

Specifications

Test Station Number: 5 (each with 5 sets of volume flow sensors)
Volume Flow Measurement: 25 sensors for simultaneous measurement
Timing Accuracy: ±0.1s
Flow Range: 1.00 l/h to 3.60 l/h
Max Test Pressure for Irrigation Tube: ≤500 kPa
Emitter Spacing: 100 mm to 300 mm
Emitter Diameter Options: Φ12mm, Φ16mm, Φ18mm, Φ20mm
User Interface: 10” touch screen with data saving capability to USB for editing on a computer
Standards:

ISO 9260
ISO 9261
