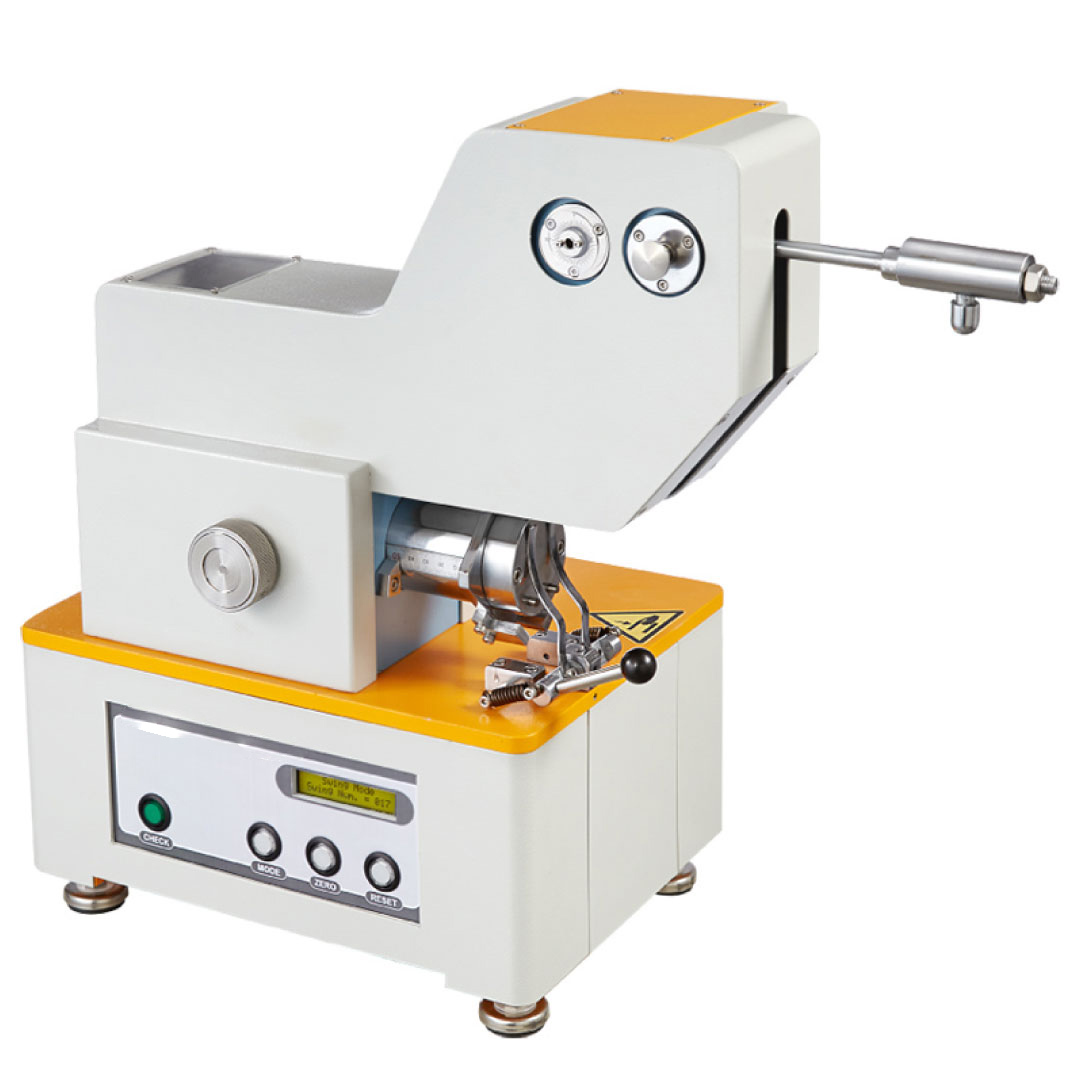

Rebound Resilience Elasticity Tester

The Rebound Resilience Elasticity Tester is a sophisticated instrument designed to measure the rebound resilience and elasticity of materials in accordance with several industry standards. This tester operates based on impact velocity and includes a temperature chamber for testing across a range of temperatures. The machine is equipped with various features to ensure precise and reliable measurements.

Categories: Rubber Testing, Testing by Material

Specifications	Standards Compliance: Conforms to manufacturing standards: ASTM D1054, DIN 53512, DIN 53573, ISO 4662. Pendulum Drop Angle: Equipped with a drop angle of 90° for accurate impact testing. Impact Action: Features impact actions of 0.5J and 0.2J to accommodate different testing requirements. Range of Indication: Provides a range of indication from 0~100% with a scale value of 1%. Impact Velocity: Operates at an impact velocity of 2 m/s. Specimen Thickness Adjustment: Adjustable specimen thickness range from 0~60 mm. Temperature Chamber: Temperature range: Room temperature to 200°C. Exterior material: Steel. Interior material: SUS304 stainless steel plate (2B polish). Weight: Approximately 65 kg. Dimensions: 820 (W) x 530 (D) x 970 (H) mm. Machine Dimensions and Weight: Machine dimension: 610 (W) x 370 (H) x 180 (D) mm (excluding temperature chamber). Machine weight: Approximately 25 kg (excluding temperature chamber). Additional Features: Includes an assist fitting for ease of operation.

Specifications

Standards Compliance:

Conforms to manufacturing standards: ASTM D1054, DIN 53512, DIN 53573, ISO 4662.
Pendulum Drop Angle:

Equipped with a drop angle of 90° for accurate impact testing.
Impact Action:

Features impact actions of 0.5J and 0.2J to accommodate different testing requirements.
Range of Indication:

Provides a range of indication from 0~100% with a scale value of 1%.
Impact Velocity:

Operates at an impact velocity of 2 m/s.
Specimen Thickness Adjustment:

Adjustable specimen thickness range from 0~60 mm.
Temperature Chamber:

Temperature range: Room temperature to 200°C.
Exterior material: Steel.
Interior material: SUS304 stainless steel plate (2B polish).
Weight: Approximately 65 kg.
Dimensions: 820 (W) x 530 (D) x 970 (H) mm.
Machine Dimensions and Weight:

Machine dimension: 610 (W) x 370 (H) x 180 (D) mm (excluding temperature chamber).
Machine weight: Approximately 25 kg (excluding temperature chamber).
Additional Features:

Includes an assist fitting for ease of operation.
